Double horizontal re circulatory Air Door

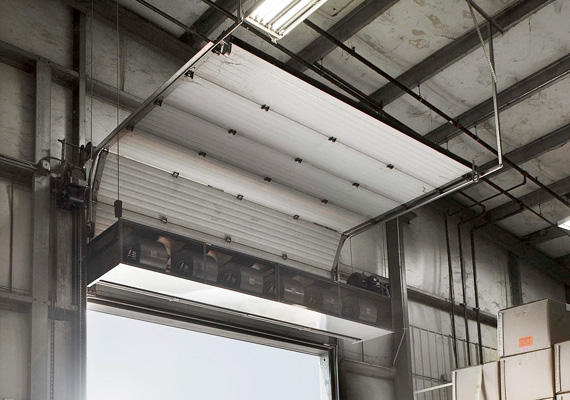

Overhead sectional door panel raised with an air curtain unit mounted above it

The re circulatory air door reduces ice, fog and moisture to dramatically increase safety and material handling.
Dock and Door Systems Series invisible dual air barriers allow for unobstructed traffic flow with reduced refrigeration loss and/or heat gain.
Significantly reduces fog, ice and moisture associated with wide-open doorways.
Adjustable and programmable air speed controls, allowing for precise application settings.
Integrated self-regulating EPLC controlled heater unit for optimal air mixing temperature control and condensation reduction.
Dock and Door Systems efficiency reduces coil defrosting burden and improves refrigeration cycle efficiency.
Electric or hot gas heat reclaim allows for precise application requirements.
Eliminates maintenance costs associated with hard panel doors. No need for energy absorbing infrared heat lamps.
Fully programmable logic controller with preset modes for maximum energy cost savings.
All galvanized or stainless steel design for clean-ability.
Standard sizes range between 6’x6’ to 10’x15' with custom options available upon request
Electrical features include NEMA-4 fiberglass control box, fully programmable EPLC controls, Variable frequency drive and optimization Controls (Freezer door).
Dock and Door Systems features a high efficiency low maintenance direct drive operators with minimum 5 h.p. motors
Additional options include digital cooler door display and stainless steel construction and more.
Dock and Door Systems doors come complete with a One year limited warranty on all components.
